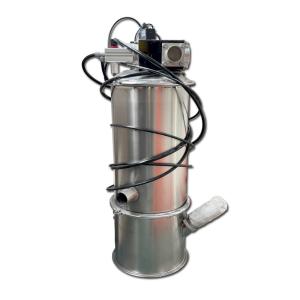

The vacuum loader, also known as the vacuum conveyor, is a dust-free, enclosed
pipeline conveying equipment that transports granular and powdered materials using
suction. It utilizes the pressure difference between vacuum and the ambient
environment to create gas flow within the pipeline, which moves the powdered
materials, thus completing the conveying of powders. Our country has introduced
advanced foreign vacuum technology, continuously improving and refining it, and it is
now widely used in various light and heavy industrial sectors such chemical,
pharmaceutical, food, metallurgy, building materials, and agricultural by-products.

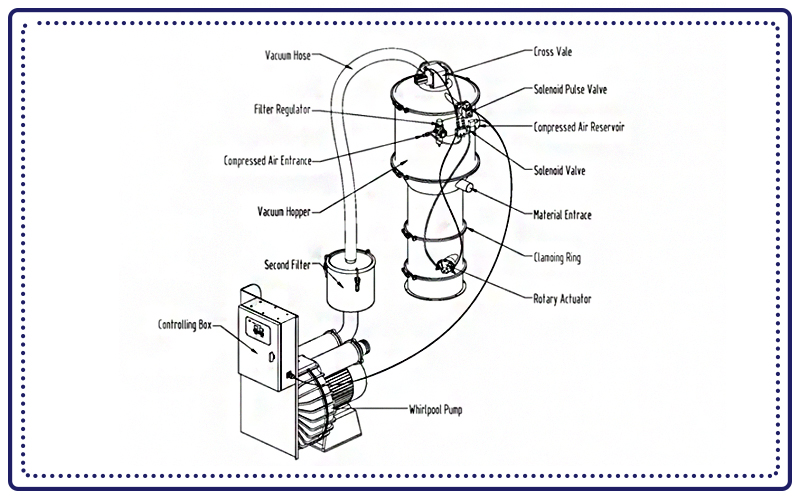

The working principle of the vacuum loader is to use the vacuum generator to create
negative pressure, forming a vacuum airflow. The material is sucked into suction
port, forming a material-air flow, and then it travels through the suction pipe to reach
the material bin of the loader. In the material bin, the separates the material from the
air. When the material fills the material bin, the controller automatically cuts off the air
source, the vacuum generator stops working, and at same time, the material bin door
automatically opens, and the material falls into the equipment's material hopper. At
this point, compressed air automatically cleans the filter the pulse blowback valve.
When the time comes or the material level sensor sends a loading signal, the loader
automatically starts.
1.Dust-free and sealed: The vacuum loader uses sealed pipelines for material
conveying, and the entire conveying process is completed in a completely sealed
state, dust pollution.
2.High degree of automation: The vacuum loader controls materials in an
automated manner, transporting them according to preset parameters without the
need for direct human operation
3. Space-saving: Due to pipeline transportation, the vacuum loader occupies less
space and can complete the conveying of powders in narrow spaces, making
working space look neat and beautiful.
4. Improve work efficiency: The vacuum loader can reduce labor intensity and
improve work efficiency.
5. High safety: The vacuum loader uses air as the only power source, which is
an intrinsically safe explosion-proof conveying equipment, suitable conveying
flammable and explosive materials in occasions with high explosion-proof
requirements.
6. Easy maintenance: Due to its simple structure, it is quite convenient for
maintenance and repair.
| Model | Hopper Capacity(L) | Working pressure | Conveying Capacity(kg/h) | Compressed air consumption |
| QVC-1 | 1.1 | 0.4-0.6Mpa | 50-300 | 180NL/min |
| QVC-2 | 6 | 0.4-0.6Mpa | 100-700 | 360NL/min |
| QVC-3 | 12 | 0.4-0.6Mpa | 300-1500 | 720NL/min |
| QVC-4 | 42 | 0.4-0.6Mpa | 600-3000 | 1440NL/min |
| QVC-5 | 60 | 0.4-0.6Mpa | 900-6000 | 2880NL/min |

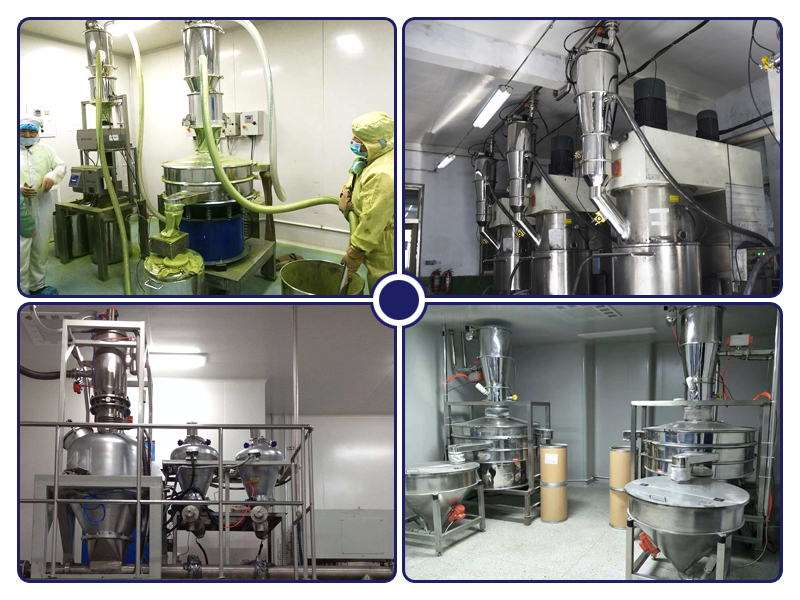

Wide range of applications: The vacuum loader is mainly used for conveying
powdery and granular materials, such as raw pharmaceutical powders,
chemicalders, metal oxide powders, etc.; however, it is not suitable for conveying
overly moist, sticky, or heavy materials.
Company Profile
We have been specializing in the production of Screening and conveying equipment for
13 years. China's vibrating screen industry top three. And we have done matching and
OEM for many large companies. Including the world's top vibrating screen manufacturer,
Sweco, USA, we have OEM for his China region. And our products are often exported to
Australia, Thailand, Indonesia, New Zealand and other countries.
We welcome customers or dealers to visit our factory and will arrange everything for you.
Our factory address: West of the industrial and commercial office of Da Zhaoying Town,
Xinxiang City, Henan Province.
