High Efficiency And High Precision Double Helix Cone Mixer For Powder Granular
Product Introduction
Double helix cone mixer is a new type of high efficiency and high precision mixing equipment. Using the principle of the combination of rotating motion and the rotating motion of two conical screws, the materials with different specific densities can achieve the appropriate mixing degree in the mixer. The mixing speed is fast and the effect is good. Widely used in pharmaceutical, food, chemical, pesticide, feed, petroleum, metallurgical mining, fertilizer, paint, pigments, dyes, additives, refractory, fine chemical, new materials, electronic plastics, ceramics, building materials and powder and other industries.
Product Parameter
| Specifications | Volume(m3) |
| 0.01 | 0.05 | 0.1 | 0.15 | 0.2 | 0.3 | 0.5 | 3 |
| Power | 0.37 | 0.75 | 1.1 | 1.5 | 2.2 | 2.2 | 3 | 7.5 |
| Rotate speed | Autogiration | 159 | 130 | 130 | 183 | 108 | 118 | 118 | 51 |
| r/min | Revolution | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Loading coefficient | 0.4-0.6 |
| Material diameter | 20-100 mesh |
| Mixing uniformity | Relative deviation (10min)<=1.5 |
| Net weight KG | 120 | 150 | 200 | 230 | 400 | 500 | 600 | 2100 |

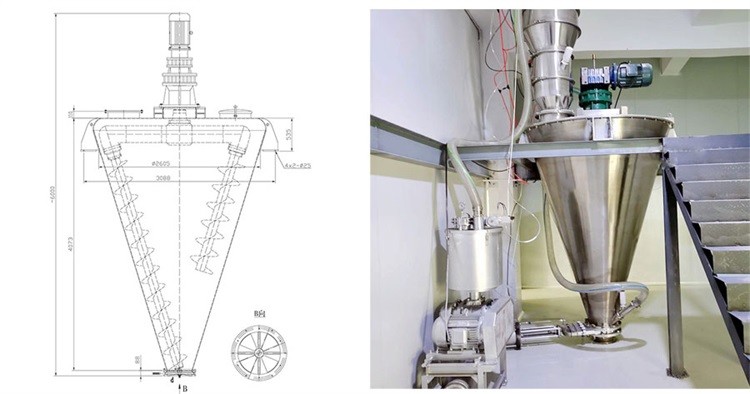

| Boundary dimension | Diameter | 420 | 550 | 670 | 780 | 865 | 936 | 1142 | 2210 |
| Total height | 900 | 1100 | 1440 | 1700 | 1650 | 1960 | 230 | 3740 |
| Cylinder height | 450 | 660 | 820 | 930 | 950 | 1022 | 1355 | 2650 |
| Center distance of support | 370 | 490 | 605 | 715 | 805 | 856 | 1065 | 2130 |
| Support to cylinder face | 100 | 100 | 140 | 140 | 145 | 215 | 215 | 245 |
| Feeding port size | 65 | 100 | 120 | 120 | 150 | 200 | 200 | 300 |
| Discharging port size | 100 | 100 | 120 | 140 | 200 | 225 | 225 | 325 |
| Number of supports - aperture | 4-12 | 4-12 | 4-14 | 4-14 | 4-20 | 4-20 | 4-20 | 4-23 |
| More model can be customized |
Features
1. The structure is reasonable, the operation is safe and reliable, the screw shaft has no bottom bearing,
eliminates the fault caused by the bottom bearing powder leakage.
2. Fast mixing speed and even mixing quality. This machine has an asymmetrical arrangement of biconical
screws. The long and short screw expands the mixing range, so the contrast is very different, the mixing
ratio is suitable for all kinds of mixing .
3. The energy saving effect is obvious, the energy consumption of this machine is smaller than other types
of mixer.
4. The mixing process is gentle and the material will not be pressurized, worn and overheated.
5. The mixture is stable, without delamination or segregation.
6. Fully sealed dust free, simple operation, easy maintenance, long service life.
