| Model | Delivery(kg/h) | Warehouse volume(L) | Operating pressure(Mpa) | Compressed air consumption(N/min) |
| QVC-1 | 50-300 | 1.1 | 0.4-0.6 | 180 |
| QVC-2 | 100-700 | 6.0 | 0.4-0.6 | 360 |
| QVC-3 | 300-1500 | 12.0 | 0.4-0.6 | 720 |
| QVC-4 | 600-3000 | 42 | 0.4-0.6 | 1440 |
| Machine can be customized according to your needs |

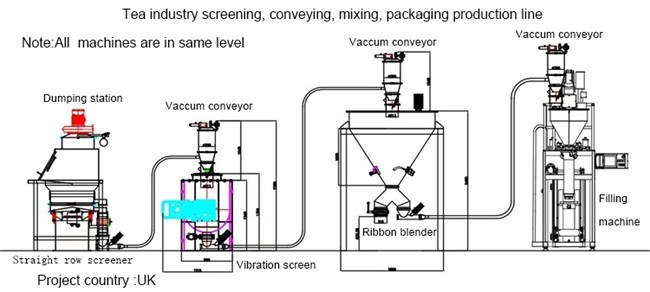

The picture below is a production line we designed for an UK customer -.If you want to buy our products or design drawings, please contact us.
Production process
1.feeding black tea to dumping station
2.vacuum conveyor conveying black tea from dumping station hopper to sieve machine
3.screening black tea in sieve machine
4.separated black tea discharge to a small buffered silo
5.vacuum conveyor conveying separated black tea from buffered silo to 1000L ribbon blender
6.separated balck tea to the ribbon blender mixing
7.vacuum conveyor conveying mixed black tea from mixer hopper to a 1000L silo
8.vacuum conveyor conveying mixed black tea from 1000L silo to the filling machine
Application
Vacuum conveyor is mainly used for conveying powder and particle materials, such as bulk drug powder, chemical powder, gold oxide powder, capsules, tablets, small food particles. At the moment. There are many pharmaceutical, chemical, food, milk powder and other parts of the world are using the vacuum conveyor to bring convenience and cleanliness.
Specific material conveying type of vacuum conveyor:
1. Plastic: polyethylene particles, polystyrene particles, polyurethane particles, recirculated rubber, vinyl - propylene particles
2. Food: sesame powder, baking agent, beans, edible mushrooms, cheese powder, cocoa powder, coconut, crystallized sugar, curry powder, juice powder, lactose, purple flower, alfalfa, pepper powder, starch, baking powder
3. Chemistry: activated carbon powder, aluminum chloride, aluminum hydroxide, zinc stearate, filter cake, sodium, bentonite, calcium carbonate, diatomite, soot, iron powder, tungsten powder, silicon carbon, silicon dioxide, dicyandiamide powder, zeolite
4. Pigments and coatings: dye powder, epoxy resin, acrylic polymer, titanium dioxide, toner powder, PTFE powder
5. Metal powder: aluminum powder, cobalt powder, iron powder, tungsten powder
6. Others: clinker cement, grape seeds, casting auxiliary materials, welding powder, quartz grains, sand grains, gravel.
