Product introduction
V Type Powder Particle Material Mixer Mixing Machine For Medicine
This machine can be used for uniform mixing of dry powder or granular materials with good fluidity, and does not produce dissolution, volatilization or deterioration of materials during the mixing process. This machine has a reasonable design, higher mixing efficiency and simpler operation than general mixers. The mixing cylinder has unique structure, high mixing efficiency, no dead corners, the cylinder body is made of stainless steel, the inner and outer walls are polished, the appearance is beautiful, the mixing is uniform, and it has a wide range of uses. It meets GMP standards. It can also be equipped with a compulsory agitator according to customer requirements, which is suitable for mixing fine powder and lumpy materials with a certain amount of moisture.
Technical parameters
| Model | Total volume(L) | Effective volume(L) | Maximum
loading
weight (kg) | Motor power (kw) | Input power | Turning
height (mm) | Spindle
speed (RPM) | Dimension (mm)
L / w / h |
| V-30 | 10-30 | 5-15 | 5-20 | 0.55 | 220 | 1200 | 29 | 800*400*1200 |
| V-200 | 200 | 100 | 80 | 1.1 | 380 | 1650 | 1-12 | 2200*650*1700 |
| V-300 | 300 | 150 | 120 | 1.5 | 380 | 1800 | 1-12 | 2320*720*1800 |
| V-500 | 500 | 250 | 200 | 2.2 | 380 | 2100 | 1-12 | 2450*720*2000 |
| V-1500 | 1500 | 750 | 600 | 4 | 380 | 2700 | 1-9 | 3300*1200*2600 |
| V-2000 | 2000 | 1000 | 800 | 5.5 | 380 | 3000 | 1-9 | 3800*1200*2900 |
| V-3000 | 3000 | 1500 | 1200 | 7.5 | 380 | 3200 | 1-9 | 4100*1800*3100 |
| More model can be customized based on your need |
Working principle

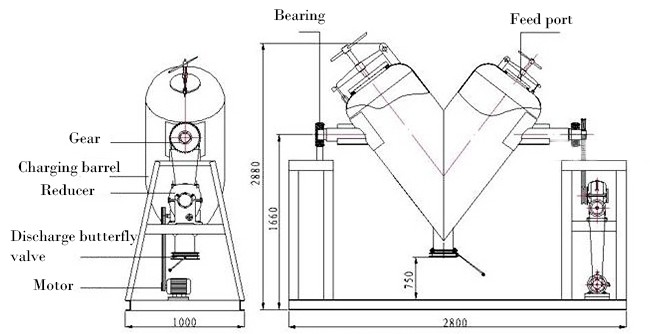

The V-type mixer is composed of two cylinders welded together in a V shape, and the shape of the container is asymmetric with respect to the axis. Due to the rotating movement, the powder particles are continuously alternated, divided, and merged in the inclined cylinder; the materials are randomly transferred from one V-shaped area to another area, and at the same time, the powder particles are slipped and superimposed in space. , The particles are distributed on the newly generated surface, so that the shearing and diffusion movement are repeated to achieve the purpose of mixing.
If you are interested in our products or want to consult solutions, please contact us, our professional engineers will answer for you.
