Product introduction
Ribbon blender sugar cocoa powder milk powder mixer machine
The main companents of EVERSUN ribbon mixer are U-shaped container,ribbon blade,observation window,motor,air valve,transmission parts and control system.The screw belt blade is generally made of double layer, the outer branch layer of the screw belt will collect the material from both sides to the center, the inner layer of the screw belt will transport the material from the center to both sides, the formation of convection mixing. Mixing parts can also be made into blades or increase the knife, to adapt to different materials.
Ribbon mixer is a trough mixer used for power,gain and paste.according to different use conditions,speed control and other functions can be added.The machine is widely applicable to mixture, can mix the viscous material evenly, can keep the particle integrity as far as possible, can mix the material with the ratio difference of 1:1000-1:10 000 better.
With 20 years of experience,we design various ribbon mixing production lines for pharmaceutical ,chemical,food,building materials and other industries.The machine can also make heating, cooling, positive pressure, vacuum according to user's requirements.
Technical specification
| Model | Motor power (kw) | Loading
coefficient | Total volume
( m ³) | L*W*H(mm) | Weight (kg) |
| RNWLDH-0.1 | 3 | 0.4-0.6 | 0.1 | 1190*740*770 | 330 |
| RNWLDH-0.5 | 7.5 | 0.4-0.6 | 0.5 | 2320*730*1130 | 980 |
| RNWLDH-1 | 11 | 0.4-0.6 | 1 | 3860*1200*1650 | 1700 |
| RNWLDH-3 | 18.5 | 0.4-0.6 | 3 | 3750*1290*1820 | 3000 |
| RNWLDH-8 | 37 | 0.4-0.6 | 8 | 4420*2150*2470 | 8200 |
| RNWLDH-12 | 45 | 0.4-0.6 | 12 | 5720*3010*2840 | 9520 |
| RNWLDH-15 | 55 | 0.4-0.6 | 15 | 5840*3540*2940 | 9950 |
| More model can be customized |
How to Choose the Right Model of Ribbon Blender
To guarantee you can choose the right ribbon blender, please communicate with our engineers, we will design a suitable model according to your actual use, to ensure that your purpose can be realized.
Product Tags:
|
|

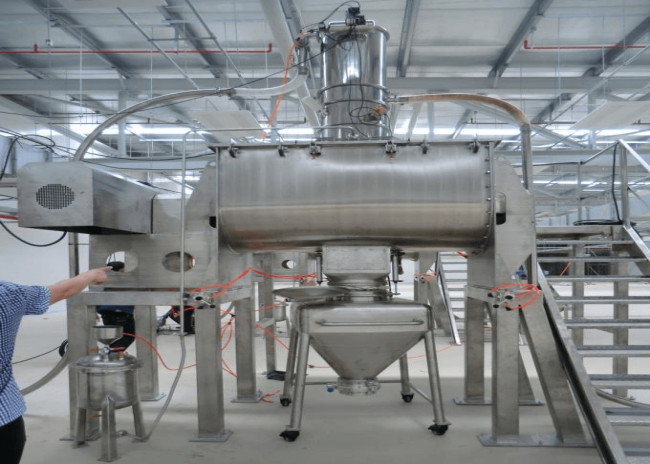

1000L Ribbon Blender Machine Sugar Cocoa Milk Powder Mixer Machine Images
|
