Carbon Steel Tumbler Rocking Sieve Screener For Sago Starch
Features and Advantages
Large capacity than normal vibrating screen
Up to six stage separation,and screening accuracy is from 95% to 99%
Using efficient sieve cleaning system,such as silicone rubber ball,ultrasonic sieve cleaning system
Without blinding sieve,sealed dust and safe operation
No vertical vibration force,so the screening parts life increase and reduce maintenance;
With low noise which is less than 75db.Optimize the weight balance,foundation dynamic load is low.
Product Introduction
| Name: | Carbon Steel Tumbler Rocking Sieve Screener For Sago Starch |
| Mesh Size | 2~500 |
| Motor | Italy OLI motor, Swiss ABB motor |
| Voltage | Customized |
| Materials | Carbon Steel, SUS304, SUS316L |
| Application | powder, granule, bulk solids, liquid |
| Customized service | Available |

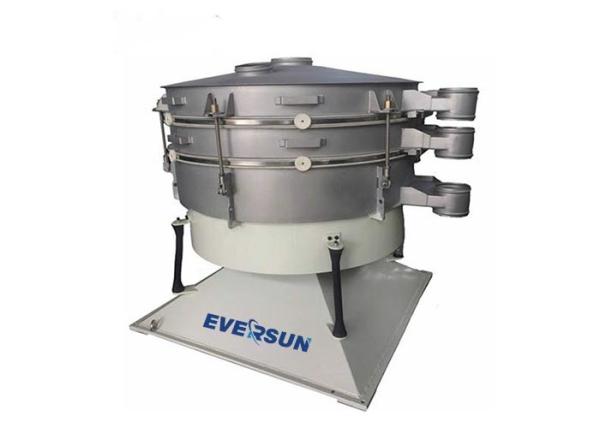

Eversun Machinery Tumbler Screening Machine is one large capacity rotary sieving machine with high precision.
It uses currently the most effective simulation principle of artificial screening motion(screening accuracy,efficiency,
and screen life are 5-10 times that of conventional vibration screens),which meets all fine and ultra-fine ranges of
powders and particles material,especially suitable for difficult materials.
Technical Parameter
| Model | Screen mesh area(m2) | Frequency (r/min) | Screen slope (degree) | Granularity size(mm) | Amplitude (mm) | Power (KW) |
| EYBS-600 | 0.28 | 220-280 | 0-10 | ≤100 | 20-70 | 0.75 |
| EYBS-1000 | 0.66 | 220-280 | 0-10 | ≤100 | 20-70 | 1.5 |
| EYBS-1200 | 0.98 | 220-280 | 0-10 | ≤100 | 20-70 | 2.2 |
| EYBS-1500 | 1.67 | 220-280 | 0-10 | ≤100 | 20-70 | 3 |
| EYBS-1800 | 2.37 | 220-280 | 0-10 | ≤100 | 20-70 | 4 |
| EYBS-2000 | 2.89 | 220-280 | 0-10 | ≤100 | 20-70 | 4 |
| EYBS-2600 | 5.3 | 220-280 | 0-10 | ≤100 | 20-70 | 5.5 |
| Machine can be customized based on your need |
Detailed Images
Application
Chemical industry,food and spices,new materials,plastics,mining,medicine,metallurgy,rubber feed,fertilizer,
sugar and salt industry,recycling industry,wood industry,plywood,glass beads,metal silicon and other industries.
Our Service
1. Detailed pre-sale sieving suggestion.
2. Customization service.
3. Online technical support.
4. Video inspection of machine before delivery
5. Video installation of machine
6. Reliable after sale service.
7. 18 months quality guarantee and life time technical assistance.
8. We can send engineeres to clients' company for assistance.
9. All the assistance needed from clients.
FAQ
Q:How many kinds of material are supported?
A:All stainless steel (304, 316L)
All carbon steel Q235A
Contact part Stainless steel.
Q:Is it special requirement available?
A:Yes
Q: How long will my order take?
A: Normal delivery is about 7 working days. Ending delivery schedule depends on the quantity and items you ordered.
